Creating an Action Type

To create a new action type in Bytebeam console,

1

Access Actions Tab

Click on the Actions tab at the top

2

Go to Action Settings Tab and Initiate Action Type Creation

Navigate to the Action Settings tab and click on the Create Action Type button

3

Fill Details

Enter the action type name, choose the payload, select an icon, and optionally set a timeout duration from the dropdown. Then, click on the Submit button to create the metadata key.

Payload for Action Types

There are 3 payload options in 4 variations available while creating the action type.

None

You can choose this for action types like Shutdown which don’t need any payload to be sent to the device while triggering the action.

JSON

You can choose this for action types which need the JSON payload to be sent to the device while triggering the action.

JSON Data via form

You can choose this for action types like Update CAN Config, which enables JSON data to be sent via a form to the device while triggering the action.

To choose this option:

1. Select JSON from the dropdown.
2. Enable the Allow user to input data via form toggle.
3. Enter the JSON Schema along with the JSON UI Schema while creating or editing the action type.

• JSON Schema Example
• JSON UI Schema Example

{
  "title": "",
  "type": "object",
  "required": [
    "can_bitrate",
    "can_filter_mask",
    "data_frequencies"
  ],
  "properties": {
    "can_bitrate": {
      "type": "string",
      "title": "CAN BitRate (kbps)",
      "default": "500"
    },
    "can_filter_mask": {
      "type": "string",
      "title": "CAN Filter Mask",
      "default": "0x00"
    },
    "data_frequencies": {
      "type": "array",
      "title": "Data Frequencies",
      "items": {
        "type": "object",
        "required": [
          "can_mask",
          "frequency"
        ],
        "properties": {
          "can_mask": {
            "type": "string",
            "title": "CAN Mask"
          },
          "frequency": {
            "type": "string",
            "title": "Frequency (Hz)"
          }
        }
      }
    }
  }
}

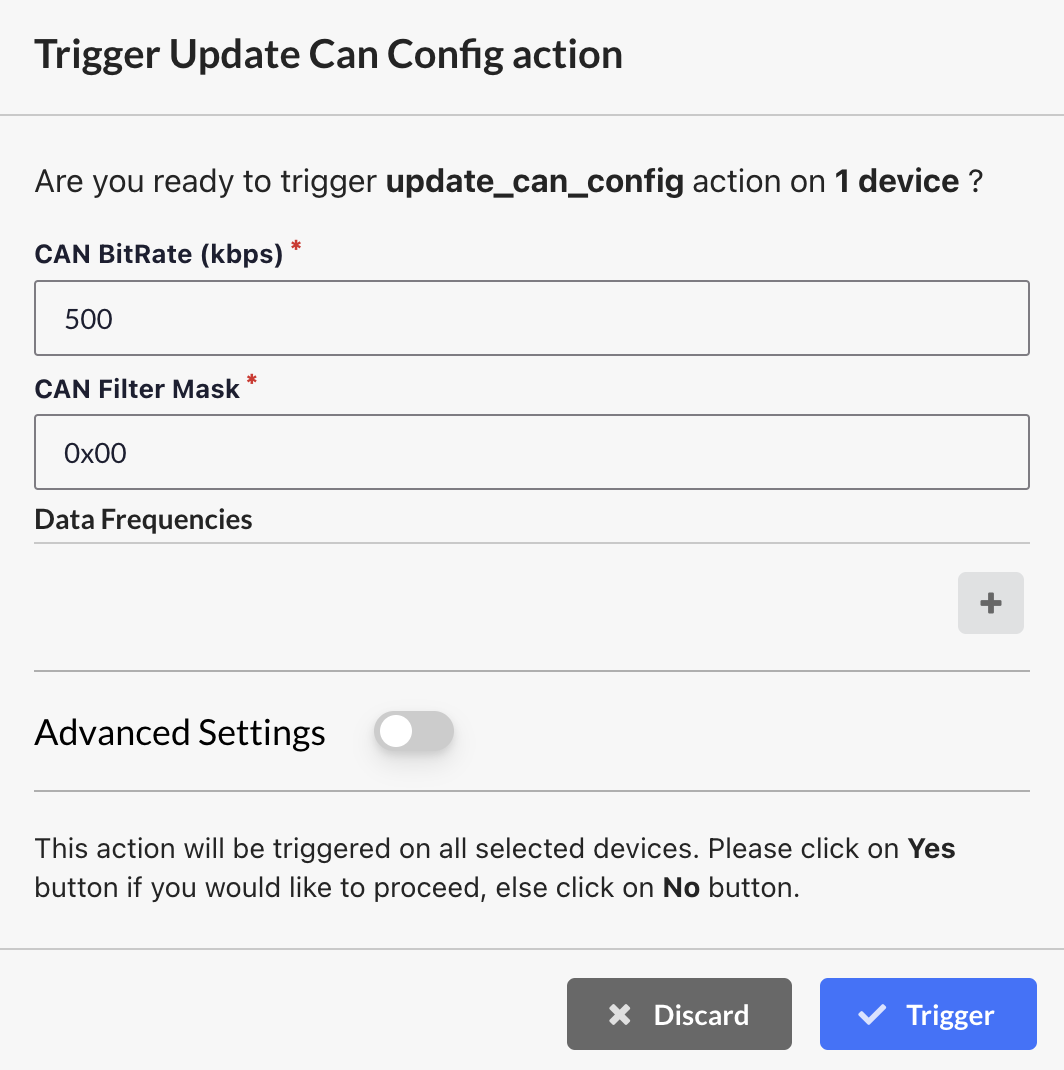

When the above configuration is used while creating the action type, it appears like this when triggering the action:

Text

You can choose this for action types which need the payload in text format to be sent to the device while triggering the action.
