Bytebeam enables you to remotely change the configuration of your application. This is done by sending JSON-based configuration to the device. This guide will walk you through how to achieve this.

Creating new device config.

Steps to update configuration:

Step 1: Go to the device management section in Bytebeam cloud.

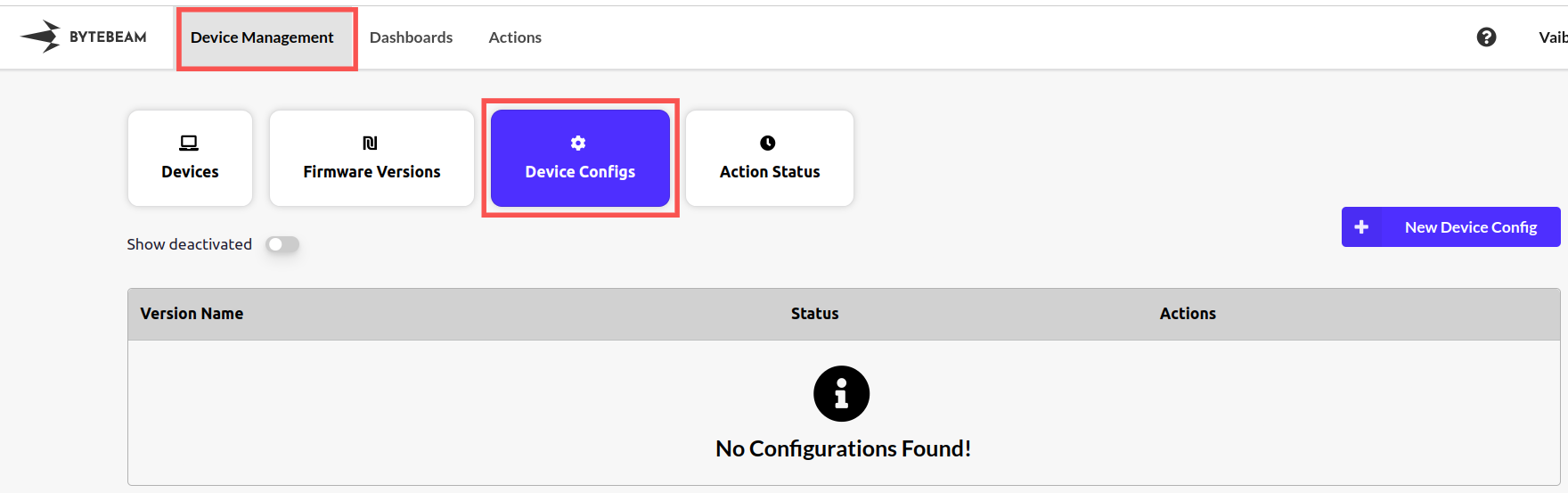

Step 2: Go to the “Device Configs” section

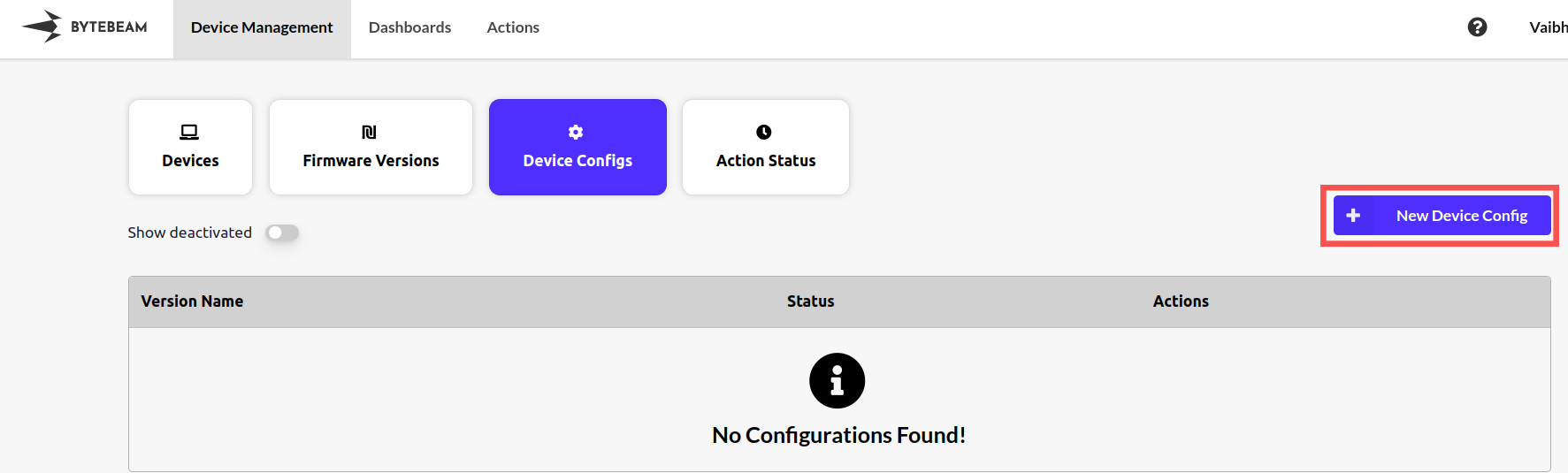

Step 3: Click on “New Device Config”

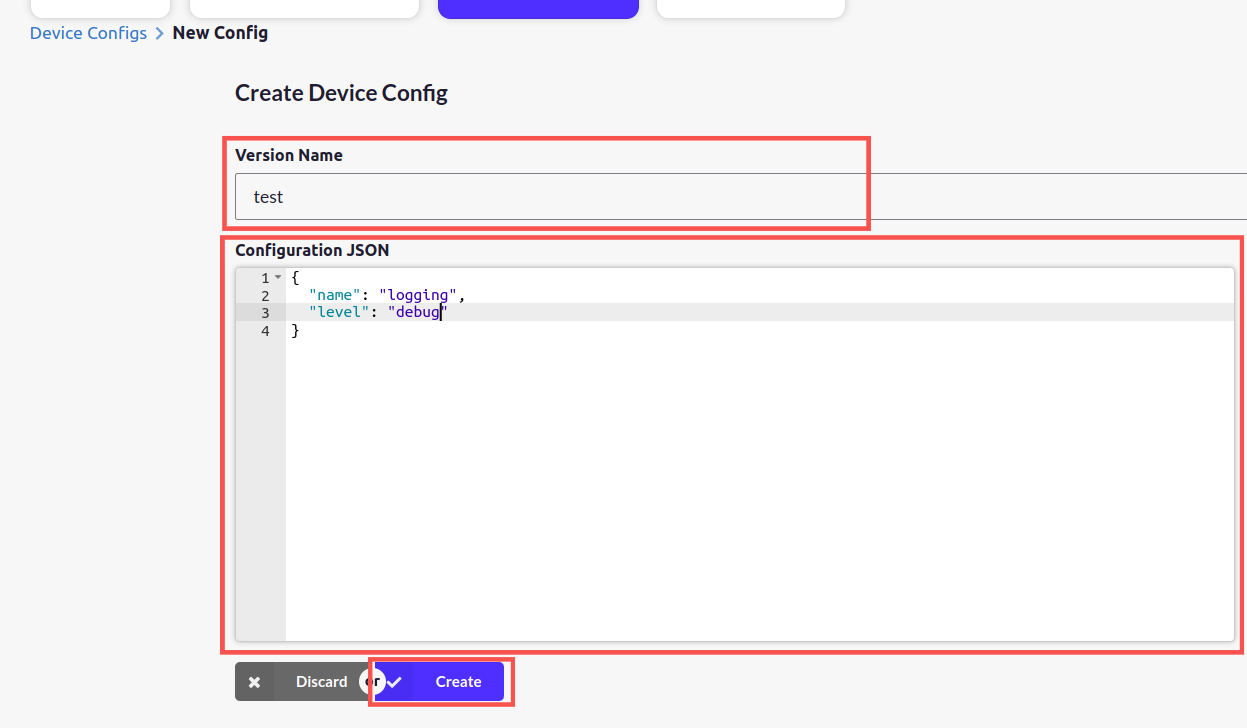

Step 4: Enter the appropriate details for the device configuration. In this example, We are changing the current log level of our Python application

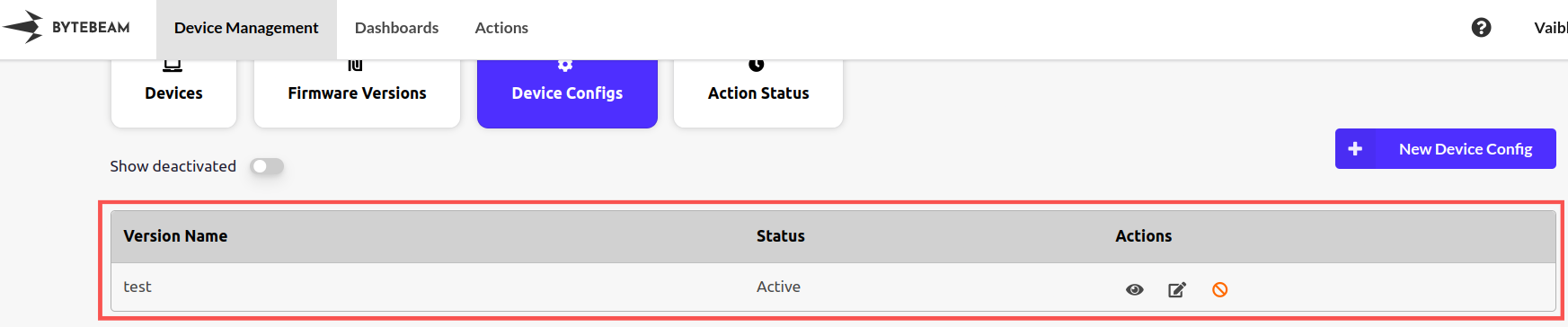

The new device config should be visible now.

On the device, First, register this action with uplink using its configuration file config.toml as we did in the Receiving Actions section. This file is present in /usr/local/share/bytebeam folder.

Edit this file to add the line actions=[] under [tcpapps.1] section.

persistence_path = "/tmp/uplink"
action_redirections={update_firmware="install_firmware"}
[tcpapps.1]
port=5050
actions=[{name="reboot"}, {name="update_config"}]

[downloader]
path="/tmp/uplink/download"
actions=[{name="update_firmware", timeout=610}, {name="send_file"}]

[apis]
enabled=true
port=3333

[ota_installer]
path="/tmp/uplink/installer"
actions=[{name="install_firmware", timeout=610}]
uplink_port=5050

[logging]
tags=["sshd", "systemd"]
stream_size=1
min_level=7

Restart the uplink using the following commands

sudo systemctl restart uplink

Next using the following example you can update the configuration on your device

:::codeblocktabs

import socket
import json
import time
import threading
import logging

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect(("localhost", 5050))


# Converts JSON data received over TCP into a python dictionary
def receive_action(s):
    return json.loads(s.recv(2048))


# Constructs a payload and sends it over TCP to uplink
def send_data(s, payload):
    send = json.dumps(payload) + "\n"
    s.sendall(bytes(send, encoding="utf-8"))


# Constructs a JSON `action_status` as a response to received action on completion
def action_complete(id):
    return {
        "stream": "action_status",
        "sequence": 0,
        "timestamp": int(time.time() * 1000000),
        "action_id": id,
        "state": "Completed",
        "progress": 100,
        "errors": [],
    }


def update_config(action):
    payload = json.loads(action["payload"])
    print(payload)
    app = payload["name"]
    print(app)
    level = payload["level"]
    if app == "logging":
        set_log_level(level)
    resp = action_complete(action["action_id"])
    print(resp)
    send_data(s, resp)


def receive_actions():
    while True:
        action = receive_action(s)
        print(action)
        if action["name"] == "update_config":
            print("update_config action received")
            print(json.loads(action["payload"]))
            update_config(action)


def set_log_level(level):
    if level.lower() == "info":
        logging.getLogger().setLevel(logging.INFO)
    elif level.lower() == "error":
        logging.getLogger().setLevel(logging.ERROR)
    elif level.lower() == "verbose":
        logging.getLogger().setLevel(logging.VERBOSE)
    elif level.lower() == "debug":
        logging.getLogger().setLevel(logging.DEBUG)


print("Starting Uplink Bridge App")
threading.Thread(target=receive_actions).start()

logging.getLogger().setLevel(logging.INFO)
logging.Formatter("%(levelname)s - %(message)s")
while True:
    time.sleep(5)
    logging.debug("This is debug")
    logging.info("This is info")

const logger = log4js.getLogger();
const net = require("net");
const log4js = require("log4js");

const client = new net.Socket();
client.connect(5050, "localhost", () => {
  console.log("Connected to server");
});

// Configure logger
log4js.configure({
  appenders: { console: { type: "console" } },
  categories: { default: { appenders: ["console"], level: "info" } },
});

// Receive JSON data over TCP
function receiveAction(socket) {
  return new Promise((resolve, reject) => {
    socket.once("data", (data) => {
      try {
        const action = JSON.parse(data.toString());
        resolve(action);
      } catch (error) {
        reject(error);
      }
    });
  });
}

// Send JSON payload over TCP
function sendData(socket, payload) {
  const send = JSON.stringify(payload) + "\n";
  socket.write(send);
}

// Construct and send action status
function actionComplete(id) {
  return {
    stream: "action_status",
    sequence: 0,
    timestamp: Date.now(),
    action_id: id,
    state: "Completed",
    progress: 100,
    errors: [],
  };
}

async function updateConfig(action) {
  const payload = JSON.parse(action.payload);
  console.log(payload);
  const app = payload.name;
  console.log(app);
  const level = payload.level;
  if (app === "logging") {
    setLogLevel(level);
  }
  const resp = actionComplete(action.action_id);
  console.log(resp);
  sendData(client, resp);
}

// Receiving actions
async function receiveActions() {
  while (true) {
    const action = await receiveAction(client);
    console.log(action);
    if (action.name === "update_config") {
      console.log("update_config action received");
      console.log(JSON.parse(action.payload));
      await updateConfig(action);
    }
  }
}

console.log("Starting Uplink Bridge App");
receiveActions();

// Log messages at intervals
setInterval(() => {
  logger.debug("This is debug");
  logger.info("This is info");
}, 5000);

use chrono::Utc;
use flexi_logger::{LevelFilter, LogSpecification, Logger};
use log::{debug, error, info};
use serde_json::json;
use std::io::{BufRead, BufReader, Write};
use std::net::TcpStream;
use std::thread;

fn receive_action(stream: &mut TcpStream) -> serde_json::Result<serde_json::Value> {
    let mut reader = BufReader::new(stream);
    let mut buffer = String::new();
    reader.read_line(&mut buffer)?;
    serde_json::from_str(&buffer)
}

fn send_data(stream: &mut TcpStream, payload: serde_json::Value) {
    let serialized = serde_json::to_string(&payload).unwrap() + "\n";
    stream.write_all(serialized.as_bytes()).unwrap();
}

fn action_complete(action_id: &str) -> serde_json::Value {
    json!({
        "stream": "action_status",
        "sequence": 0,
        "timestamp": Utc::now().timestamp_millis(),
        "action_id": action_id,
        "state": "Completed",
        "progress": 100,
        "errors": []
    })
}

fn update_config(stream: &mut TcpStream, action: &serde_json::Value) {
    let payload: serde_json::Value =
        serde_json::from_str(action["payload"].as_str().unwrap()).unwrap();
    let app = payload["name"].as_str().unwrap();
    let level = payload["level"].as_str().unwrap();
    if app == "logging" {
        set_log_level(level);
    }
    let resp = action_complete(action["action_id"].as_str().unwrap());
    send_data(stream, resp);
}

fn set_log_level(level: &str) {
    let level_filter = match level.to_lowercase().as_str() {
        "info" => LevelFilter::Info,
        "error" => LevelFilter::Error,
        "verbose" => LevelFilter::Trace, // Rust doesn't have 'verbose', using 'Trace' instead
        "debug" => LevelFilter::Debug,
        _ => LevelFilter::Info,
    };

    let log_spec = LogSpecification::default().with_default(level_filter);
    Logger::with(log_spec).start().unwrap_or_else(|e| {
        eprintln!("Failed to initialize logger: {}", e);
    });

    info!("Log level set to {}", level);
}

fn receive_actions(mut stream: TcpStream) {
    loop {
        let action = receive_action(&mut stream).unwrap();
        if action["name"] == "update_config" {
            update_config(&mut stream, &action);
        }
    }
}

fn main() {
    Logger::with_env_or_str("info").start().unwrap();
    let mut stream = TcpStream::connect("localhost:5050").unwrap();
    println!("Starting Uplink Bridge App");

    let stream_clone = stream.try_clone().unwrap();
    thread::spawn(move || {
        receive_actions(stream_clone);
    });

    loop {
        thread::sleep(std::time::Duration::from_secs(5));
        debug!("This is debug");
        info!("This is info");
        error!("This is error");
    }
}

package main

import (
    "bufio"
    "encoding/json"
    "fmt"
    "io"
    "net"
    "os"
    "time"

    log "github.com/sirupsen/logrus"
)

func main() {
    conn, err := net.Dial("tcp", "localhost:5050")
    if err != nil {
        fmt.Println("Error connecting:", err)
        os.Exit(1)
    }
    defer conn.Close()

    log.SetLevel(log.InfoLevel)
    log.SetFormatter(&log.TextFormatter{})
    log.SetOutput(os.Stdout)

    go receiveActions(conn)

    fmt.Println("Starting Uplink Bridge App")
    for {
        time.Sleep(5 * time.Second)
        log.Debug("This is debug")
        log.Info("This is info")
        log.Error("This is error")
    }
}

// receiveAction reads and decodes a JSON message from the connection.
func receiveAction(conn net.Conn) (map[string]interface{}, error) {
    reader := bufio.NewReader(conn)
    msg, err := reader.ReadString('\n')
    if err != nil {
        return nil, err
    }

    var action map[string]interface{}
    err = json.Unmarshal([]byte(msg), &action)
    return action, err
}

// sendAction encodes a payload as JSON and sends it over the connection.
func sendAction(conn net.Conn, payload map[string]interface{}) error {
    msg, err := json.Marshal(payload)
    if err != nil {
        return err
    }
    _, err = conn.Write(append(msg, '\n'))
    return err
}

// actionComplete constructs a JSON `action_status` as a response to received action on completion.
func actionComplete(id interface{}) map[string]interface{} {
    return map[string]interface{}{
        "stream":    "action_status",
        "sequence":  0,
        "timestamp": time.Now().UnixNano() / 1000,
        "action_id": id,
        "state":     "Completed",
        "progress":  100,
        "errors":    []string{},
    }
}

// updateConfig processes the update_config action.
func updateConfig(conn net.Conn, action map[string]interface{}) {
    payloadStr := action["payload"].(string)
    var payload map[string]interface{}
    json.Unmarshal([]byte(payloadStr), &payload)

    app := payload["name"].(string)
    level := payload["level"].(string)
    if app == "logging" {
        setLogLevel(level)
    }

    resp := actionComplete(action["action_id"])
    sendAction(conn, resp)
}

func setLogLevel(level string) {
    switch level {
    case "info":
        log.SetLevel(log.InfoLevel)
    case "error":
        log.SetLevel(log.ErrorLevel)
    case "verbose":
        log.SetLevel(log.TraceLevel) // Go's logrus doesn't have 'verbose', using 'Trace' instead
    case "debug":
        log.SetLevel(log.DebugLevel)
    default:
        log.SetLevel(log.InfoLevel)
    }
    log.Infof("Log level set to %s", level)
}

// recvActions handles incoming actions in a separate goroutine.
func receiveActions(conn net.Conn) {
    for {
        action, err := receiveAction(conn)
        if err != nil {
            if err == io.EOF {
                fmt.Println("Connection closed by server")
                return
            }
            fmt.Println("Error reading:", err)
            continue
        }
        fmt.Println("Action received:", action)

        if action["name"] == "update_config" {
            fmt.Println("update_config action received")
            updateConfig(conn, action)
        }
    }
}

:::

Triggering config update

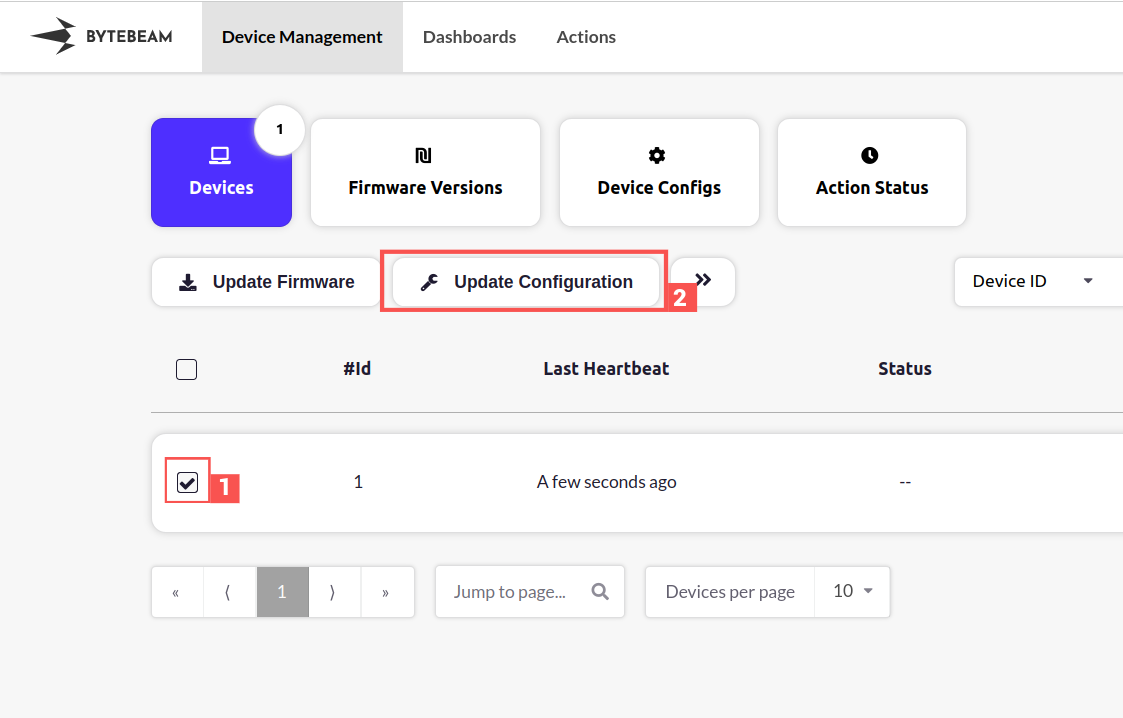

On the device management section of Bytebeam Cloud, select the device and click on Update Configuration

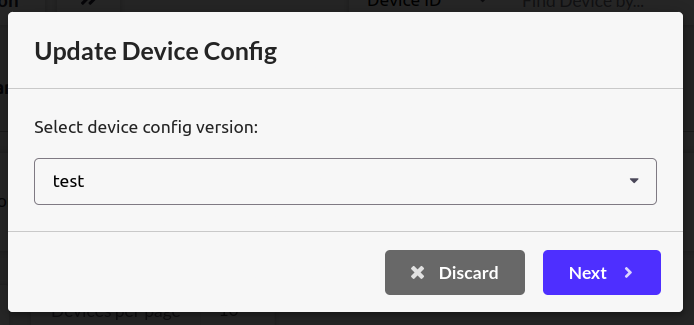

Select the appropriate config. version.

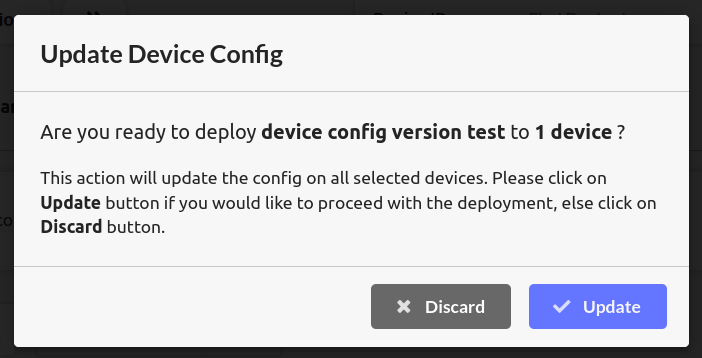

Confirm the selection.

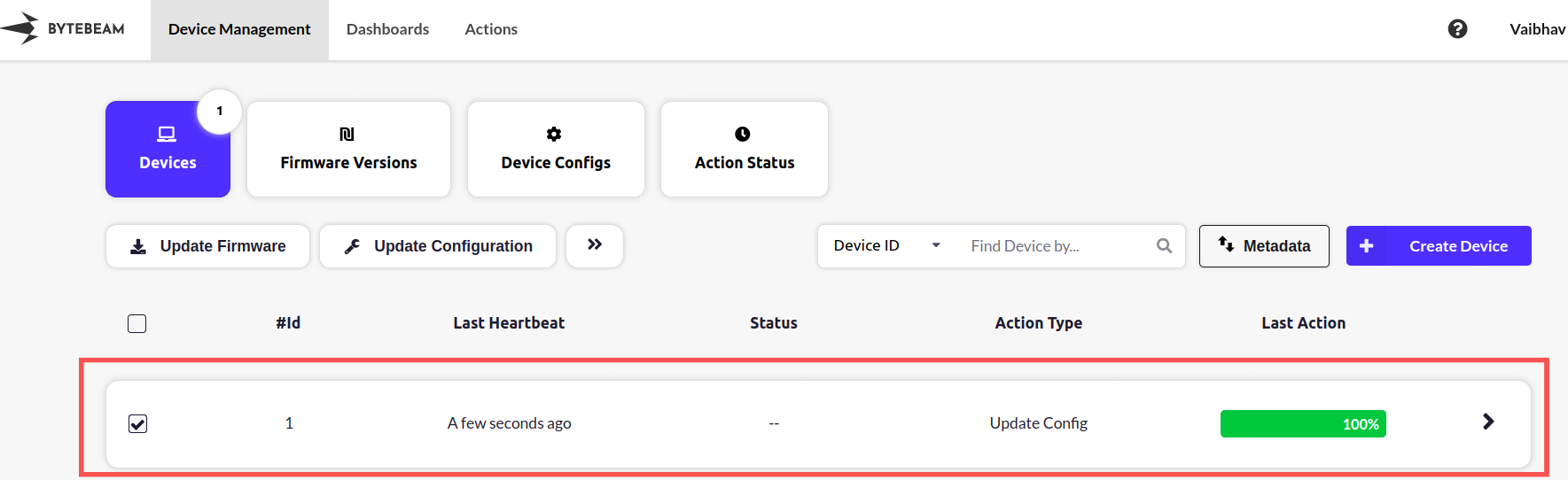

You should now be able to see the status of the update on the cloud.
