Customising device shadow

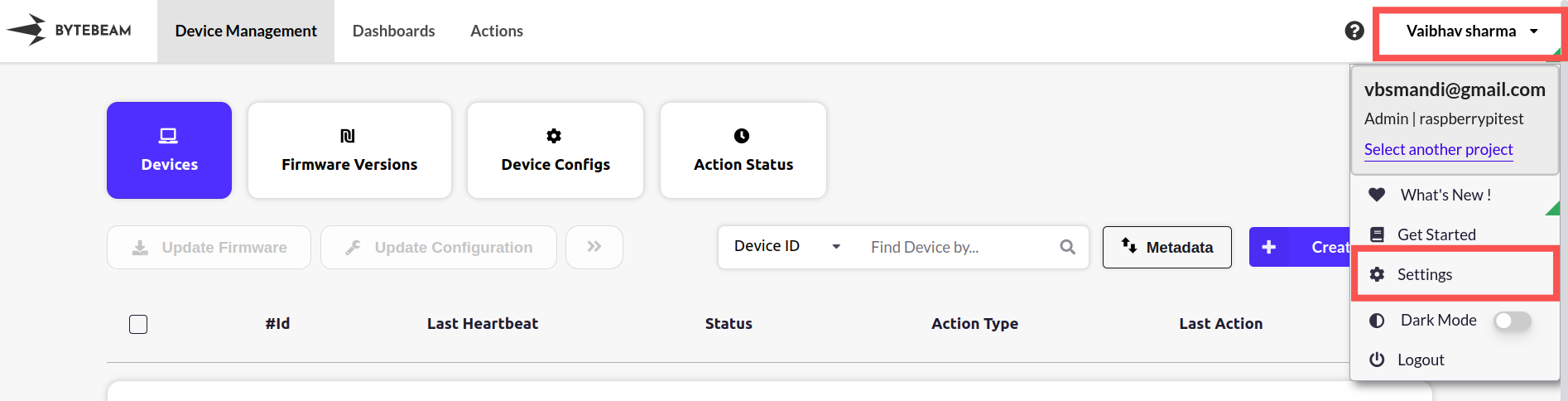

Every project in Bytebeam comes with a default Device Shadow stream. The stream by default contains just three fields Status, timestamp, and sequence. This guide shows how to create additional fields and write data to this stream from your application. For that, Click on the username at the top right corner of the Bytebeam cloud console and navigate to Settings

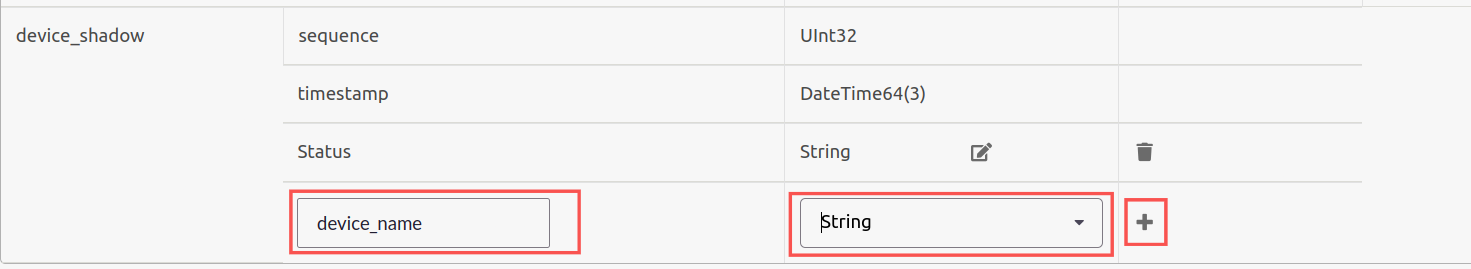

Here under the Stream Tab, you can find “device_shadow” For example, add two new columns device_name and arch to the device shadow. You can do this by entering the field name and type and clicking the + button.

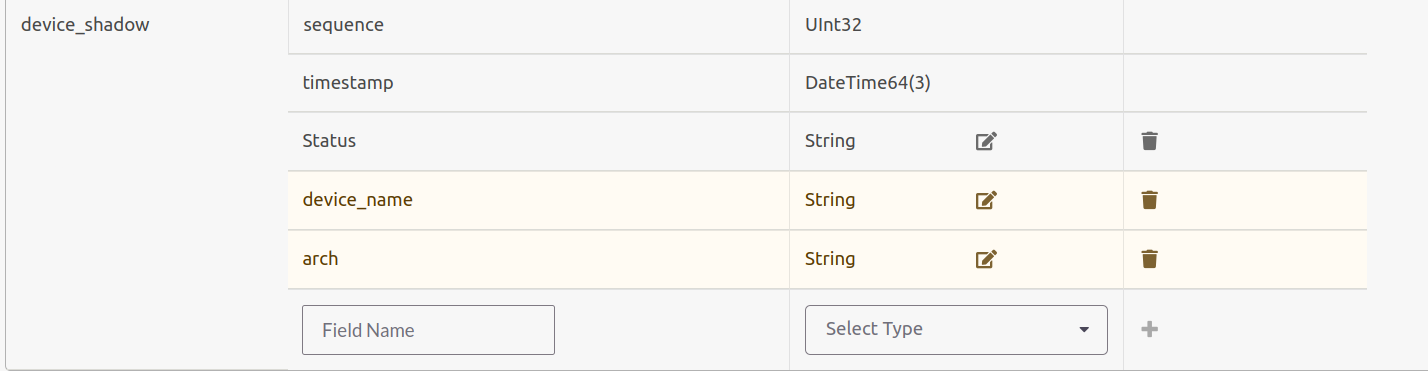

After adding both fields your device shadow will look like the below:

Now update your application to push this data to the device. :::codeblocktabs

import socket
import json
import time

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect(("localhost", 5050))


# Constructs a payload and sends it over TCP to uplink
def send_data(s, payload):
    send = json.dumps(payload) + "\n"
    s.sendall(bytes(send, encoding="utf-8"))


# Add more parameters to device shadow
def send_device_shadow(s, sequence):
    timestamp = int(time.time() * 1000)
    payload = {
        "stream": "device_shadow",
        "sequence": sequence,
        "timestamp": timestamp,
        "device_name": "Beaglebone Black Rev. C",
        "arch": "armv7",
    }
    print(payload)
    send_data(s, payload)


print("Starting Uplink Bridge App")

sequence = 1
while True:
    time.sleep(10)
    send_device_shadow(s, sequence)
    sequence += 1

const net = require("net");

// Connect to the server
const client = new net.Socket();
client.connect(5050, "localhost", () => {
  console.log("Connected to server");
});

// Constructs a payload and sends it over TCP to uplink
function sendData(payload) {
  const send = JSON.stringify(payload) + "\n";
  client.write(send);
}

// Send device shadow data
function sendDeviceShadow(sequence) {
  let timestamp = Date.now();
  let payload = {
    stream: "device_shadow",
    sequence: sequence,
    timestamp: timestamp,
    device_name: "Beaglebone Black Rev. C",
    arch: "armv7",
  };
  console.log(payload);
  sendData(payload);
}

console.log("Starting Uplink Bridge App");

let sequence = 1;
setInterval(() => {
  sendDeviceShadow(sequence);
  sequence++;
}, 10000);

use std::net::TcpStream;
use std::io::{Read, Write};
use std::thread;
use std::time::{Duration, SystemTime};
use serde_json::{Value, json};

async fn send_data(mut stream: &TcpStream, payload: serde_json::Value) {
    let send = format!("{}\n", payload.to_string());
    stream.write_all(send.as_bytes()).await.unwrap();
}

async fn send_device_shadow(mut stream: &TcpStream, sequence: u64) {
    let timestamp = SystemTime::now()
        .duration_since(SystemTime::UNIX_EPOCH)
        .unwrap()
        .as_millis();

    let payload = json!({
        "stream": "device_shadow",
        "sequence": sequence,
        "timestamp": timestamp,
        "device_name": "Beaglebone Black Rev. C",
        "arch": "armv7"
    });

    println!("{:?}", payload);
    send_data(&mut stream, payload).await;
}

#[tokio::main]
async fn main() {
    let addr = "localhost:5050";
    let mut stream = TcpStream::connect(&addr).await.unwrap();

    println!("Starting Uplink Bridge App");

    let mut sequence = 1;
    loop {
        thread::sleep(Duration::from_secs(5));
        send_device_shadow(&mut stream, sequence);
        sequence += 1;
    }
}

package main

import (
	"encoding/json"
	"fmt"
	"net"
	"os"
	"strconv"
	"time"
)

// DeviceShadow represents the payload structure
type DeviceShadow struct {
	Stream      string `json:"stream"`
	Sequence    int    `json:"sequence"`
	Timestamp   int64  `json:"timestamp"`
	DeviceName  string `json:"device_name"`
	Arch        string `json:"arch"`
}

func sendData(conn net.Conn, payload interface{}) {
	data, _ := json.Marshal(payload)
	fmt.Println(string(data))
	conn.Write(append(data, '\n'))
}

// sendDeviceShadow constructs and sends a device shadow payload
func sendDeviceShadow(conn net.Conn, sequence int) {
	t := time.Now().UnixNano() / int64(time.Millisecond)
	payload := DeviceShadow{
			Stream:      "device_shadow",
			Sequence:    sequence,
			Timestamp:   t,
			DeviceName:  "Beaglebone Black Rev. C",
			Arch:        "armv7",
	}
	fmt.Println(payload)
	sendData(conn, payload)(conn, payload)
}

func main() {
	conn, err := net.Dial("tcp", "localhost:5050")
	if err != nil {
			fmt.Println("Error connecting:", err.Error())
			os.Exit(1)
	}
	defer conn.Close()

	fmt.Println("Starting Uplink Bridge App")

	sequence := 1
	for {
			time.Sleep(5 * time.Second)
			sendDeviceShadow(conn, sequence)
			sequence++
	}
}

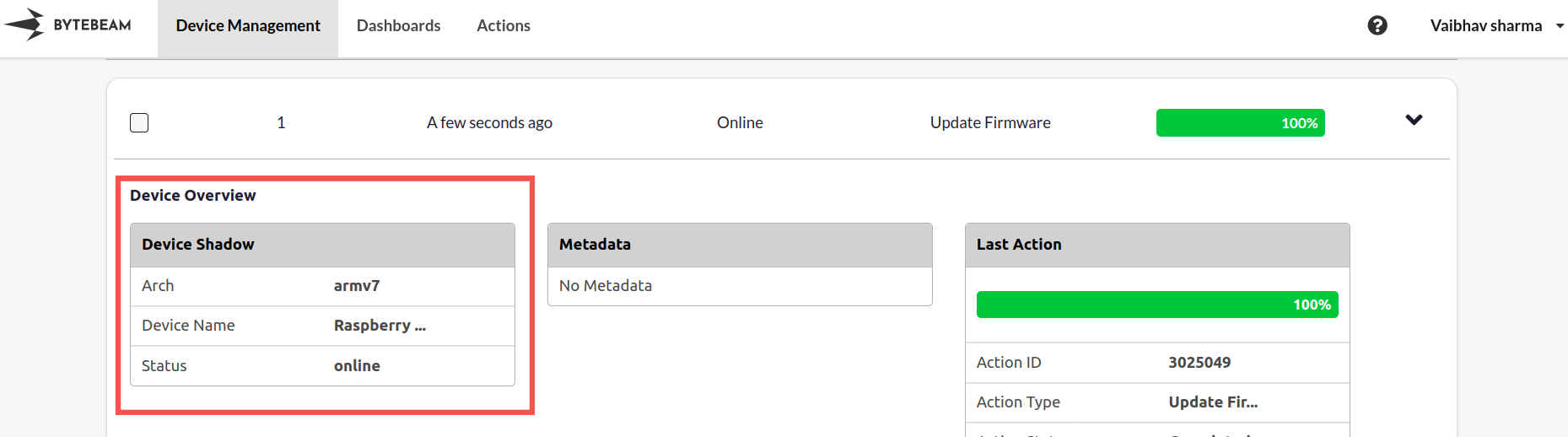

::: You should now be able to see the new fields on Bytebeam cloud:
